ACEINNA ships inexpensive high precision navigation solution for AVs

ACEINNA ships inexpensive high precision navigation solution for AVs

ACEINNA has announced an inexpensive mission critical guidance and navigation systems for autonomous vehicles – robots, drones, industrial, construction, and agricultural machinery.

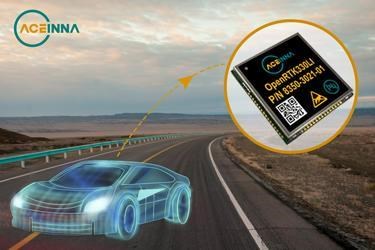

Intended for developer the OPENRTK330L can replace the more expensive and bulky precision RTK/INS systems currently used in autonomous systems and is available for $150 compared to the $10,000-plus systems currently being used.

“Accurate, compact, reliable and cost-effective, this GNSS/INS solution will enable the development, manufacturing and 24/7 operation of autonomous vehicles that are not only safe, but can accurately guide themselves from location to location, ” said Dr. Yang Zhao, CEO of ACEINNA. “The OPENRTK Precise Positioning Engine optimises satellite tracking and high RTK fixes rates while integrating seamlessly with ACEINNA’s open-source, developer-friendly Open Navigation Platform.”

In addition, the ACEINNA OPENRTK330L is claimed by the company to be the only solution on the market to integrate a triple-band RTK/GNSS receiver and a triple-redundant inertial sensor enhancing the safety of Autonomous Systems.

“In January 2020, the ACEINNA test vehicle drove from the Bay Area to the CES 2020 event in Las Vegas using this new module. Along the way, the ACEINNA engineers tracked its path and accuracy. When later compared to the recorded location data generated by the “industry gold standard” system in the trunk of the car, the results were close to identical,” explained Michael Murray, Executive VP at ACEINNA. “This means that is finally possible for developers to create autonomous devices and vehicles at an affordable price point!”

The OPENRTK330L includes a triple-band RTK/GNSS receiver coupled with redundant inertial sensor arrays to provide cm-level accuracy, enhanced reliability, and performance during GNSS outages. It integrates a very precise 1.5 Degree/Hour IMU to offer ten to thirty seconds of high accuracy localisation during full GNSS denial.

The OPENRTK330L’s embedded Ethernet interface allows easy and direct connection to GNSS correction networks around the world and the OPENRTK330L’s CAN bus interface allows simple integration into existing vehicle architectures.

The multi-band GNSS receiver can monitor all global constellations (GPS, GLONASS, BeiDou, Galileo, QZSS, NAVIC, SBAS) and simultaneously track up to 80 channels. The module has RF and baseband support for the L1, L2, and L5 GPS bands and their international constellation signal equivalents. By integrating a triple-redundant IMU array, the OPENRTK330L is also able to recognise and use only valid sensor data, ensuring high-accuracy protection limits and certifiability under ISO26262 standards. ACEINNA’s triple redundant 6-Axis IMU array uses a total of 9 accelerometer and 9 rate gyro channels

The OPENRTK330L is also supported by ACEINNA’s Open Navigation Platform allowing custom embedded application development on top of ACEINNA’s proven positioning engine and dead-reckoning algorithms.

The ACEINNA OPENRTK330L hardware also includes, Ethernet, UART, SPI and CAN interfaces for versatile integration into a host system. Additional specifications include operating temperature range of -40C to +85C, and qualification to standard automotive shock and vibration levels.

Source: www.newelectronics.co.uk
